General Specifications

Sound system

11.1.4 channel

Power supply

100 – 240V AC, ~ 50/60Hz

Networked standby power

< 2.0W

Operating temperature

0°C – 45°C

Audio Specifications

Total speaker power output (Max @THD 1%)

1170W

Soundbar output power (Max @THD 1%)

650W

Surround speaker output power (Max @THD 1%)

2x 110W

Subwoofer output power (Max. @THD 1%)

300 W

Soundbar transducer

6x (46×90)mm racetrack drivers, 5x 0.75″ (20mm) tweeters, 4x 2.75″ (70mm) up-firing full-range drivers

Surround speaker transducer

(46×90)mm racetrack driver, 0.75″ (20mm) tweeter, 2.75″ (70mm) up-firing full-range driver, 2x (48×69)mm rounded rectangle Passive Radiators

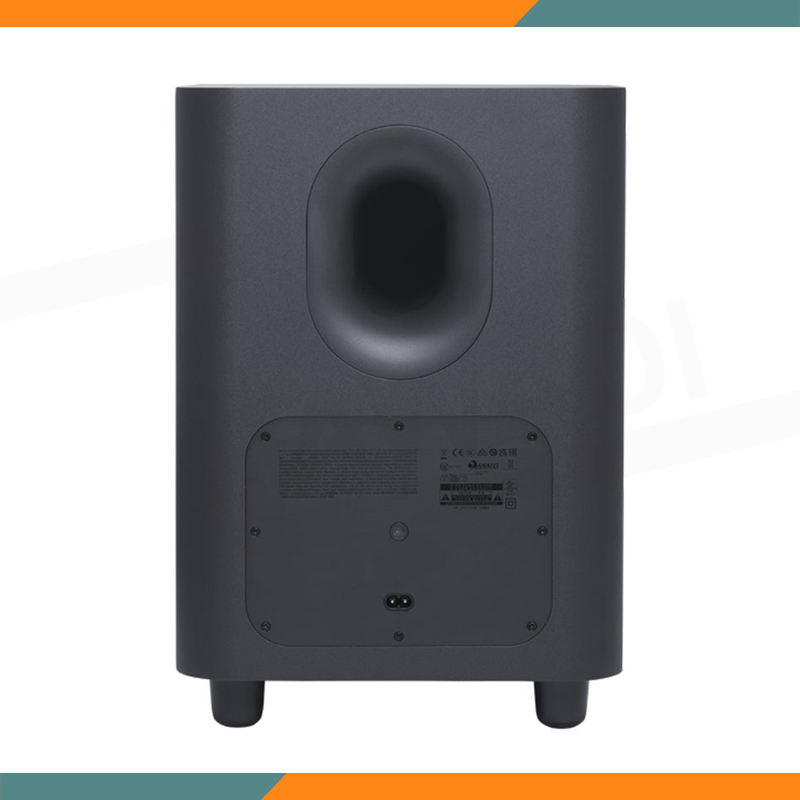

Subwoofer transducer

12” (311mm)

Frequency response

33Hz – 20kHz (-6dB)

Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D)

1376 x 60 x 139 mm / 54.2″ x 2.4″ x 5.5″

Main soundbar dimensions (W x H x D)

1000 x 60 x 139 mm / 39.4″ x 2.4″ x 5.5″

Detachable surround speaker dimensions (each) (W x H x D)

202 x 60 x 139 mm / 8″ x 2.4″ x 5.5″

Subwoofer dimensions (W x H x D)

366 x 481 x 366 mm / 14.4″ x 18.9″ x 14.4″

Soundbar weight

4.3kg / 9.5 lbs

Detachable surround speaker weight (each)

1.25 kg / 2.75 lbs

Subwoofer weight

15.65 kg / 34.5 lbs

Packaging dimensions (W x H x D)

450 x 1135 x 549 mm/ 17.7″ x 44.7″ x 21.6″

Packaging Weight

27kg / 59.50 lbs

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file format

MP3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 – 48 kHz

MP3 bitrate

80 – 320 kpbs

Bluetooth version

Main bar – 5.0, Detachable surround speaker – 5.2

Bluetooth profile

Main bar – A2DP 1.2 and AVRCP 1.5, Detachable surround speaker – A2DP 1.3 and AVRCP 1.6

Bluetooth transmitter frequency range

2400MHz – 2483.5MHz

Bluetooth transmitter power

<15dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power

< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz

5G Wi-Fi transmitter power

5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range

2406 – 2474MHz

2.4G wireless power

＜10dBm (EIRP）

Battery

Lithium battery

3.635V, 6600 mAh

Detachable surround speaker playtime

up to 12 Hours (may vary according to content type and volume level)

Video Specifications

HDMI video input

3

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10, Dolby Vision
